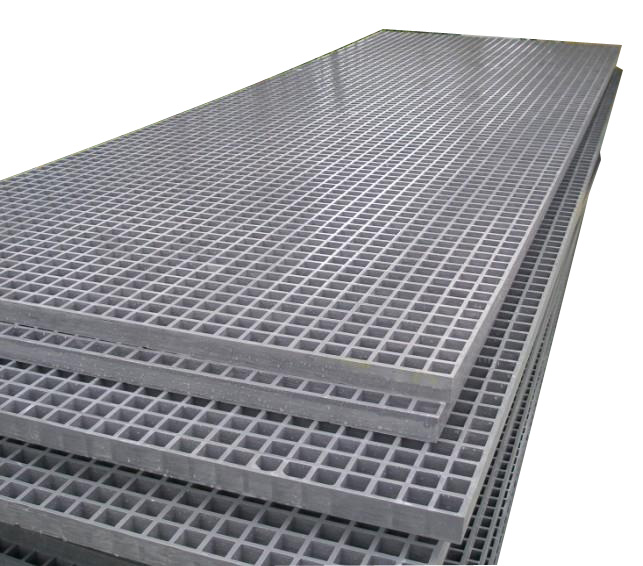

FRP Grating
Features:
1. Corrosion resistant
2. Fire retardant to Class 1 with ASTM E84
3. Light weight
4. Electrical insulating
5. UV resistance and anti-aging.
Sizes
|
Thickness mm |
Mesh size mm |
Panel size mm |
Open area % |
Unit weight kg/m2 |
|
25 |
19x19 |
1220x3660 |
40 |
17 |
|
25 |
38x38 |
1220x4038 |
70 |
13 |
|
25 |
50x50 |
1007x4047 |
72 |
12.9 |
|
30 |
19x19 |
1220x3660 |
40 |
17 |
|
30 |
38x38 |
1220x4038 |
70 |
18.5 |
|
40 |
40x40 |
1007x4047 |
72 |
19.8 |
|
38 |
38x38 |
1220x4038 |
70 |
18.5 |
|
38 |
19x19 |
1220x3660 |
42 |
22.5 |
|
38 |
38x152 |
1220x3660 |
73 |
18.5 |
|
50 |
50x50 |
1220x3660 |
78 |
20.7 |
|
60 |
38x38 |
1220x3660 |
60 |
50.5 |
