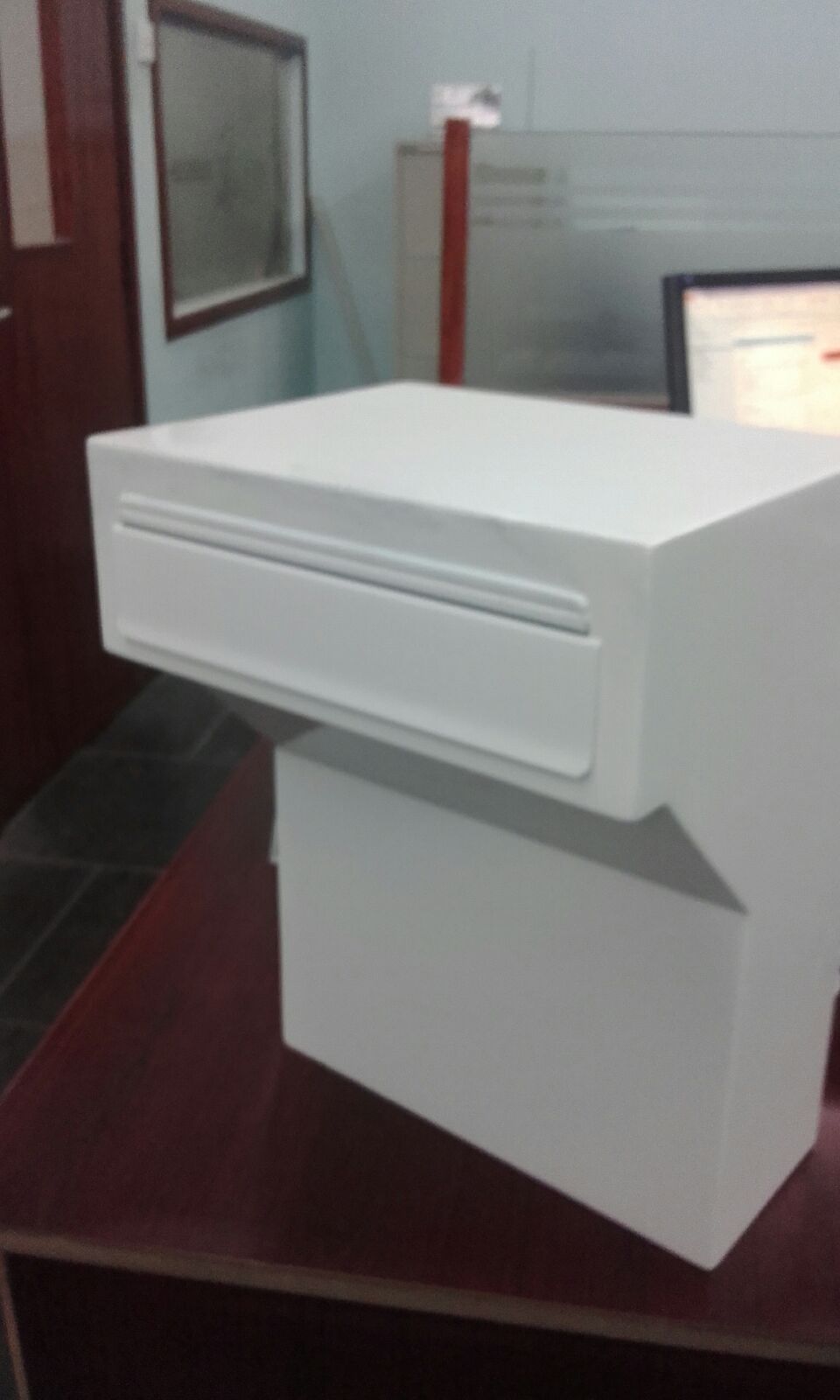

Fiberglass frp drop-in box anti-theft purpose



Manhole cover features:

1. High load capacity and resilience. BS EN124:1994.

2. No color fading, Anti-UV, acid, alkali, weathering resistance.

3. Designed structure & pressure dispersion.

4. Consequences of temporarily overloading.

5. Long service life for more than 30 years.

6. Light weight. Easy maintenance.

7. Water proof, lockable if needed.

8. Safety options, Anti-theft.

9. Shock proof, low noise.

10. Customer design.

Manhole cover performance parameter:

1)Longitudinal strength:250-600Mpa

2)Compressive strength:300-600Mpa

3)Stretch modulus:25-35Gpa

4)Break elongation ratio:1.3-10.0%

5)Bending strength:700-1400Mpa

6)Curving module:25-35Gpa

7)Poisson-ratio:0.35

8)Relative density:1.11-1.15

9)Water-absorptive(24h):10-30mg

10)C250(can load 25tons) D400(can load 40tons)

11)Volume resistivity:1x(1012-1014)cm

12)general application temperatures in -40~120°C



Brand Name

BAOLUAN

Application

Green Belt, Sidewalk,  Pedestrian, driveway, highway, chemical, telecom, electricity industry

Surface Treatment

Anti-Slip, anti-UV

Technique

mould pressing

Dimensions

220mm-1350mm dia as well as square manhole from 500mm-1500mm

Material

FRP/SMC/ BMC

Shape

round, square, rectangular or customize.

Size

customized

Color

black, grey, green,yellow, orange and etc

Weight

half weight of cast iron manhole cover

Working Temperature

 -40°C-200°C

Service Life

more than 30 years

Working Condition

Anti Corrosion, Anti uv, anti acid and alkali, rusts etc.

Conduction

Non-electricity conduction and non-heat conduction

Noise

Less noise and lower vibration

Specifications

1. SMC/BMC material

2. round and square shape

3.A15,B125,C250,D400,E600,F900 class

4. long use life

Delivery Time

Within 30 days after get the advanced payment.

Packing

wooden pallet, carton,wooden case and we can also as per customer's request

FRP MANHOLE COVER SIZES:

Item                  Clear Opening Cover Size Frame Size Cover           Thickness Loading Class
BLA-MR550 Ø550mm Ø620mm   Ø690mm 25mm A15/B125/C250/D400
BLA-MR600 Ø600mm Ø670mm Ø740mm 25mm B125/C250
BLA-MR601 Ø600mm Ø690mm Ø740mm 52mm D400/E600
BLA-MR630 Ø630mm Ø700mm Ø750mm 27mm C250
BLA-MR675 Ø675mm Ø757mm Ø805mm 52mm D400
BLA-MR700 Ø700mm Ø770mm Ø840mm 35mm B125/C250
BLA-MR701 Ø700mm Ø770mm Ø840mm 50mm D400/E600
BLA-MR800 Ø800mm Ø870mm Ø940mm 35mm B125/C250
BLA-MR801 Ø800mm Ø870mm Ø940mm 65mm D400/E600
BLA-MR900 Ø900mm Ø970mm Ø1040mm 30mm B125/C250
BLA-MR901 Ø900mm Ø970mm Ø1040mm 65mm D400/E600






 FRP GULLY GRATING SIZES:

Item Clear Opening Cover Size Frame Size Cover Thickness Loading Class
BLA-WG2343 230x430mm 300x500mm 370x570mm 35mm A15/B125/C250/D400
BLA-WG3161 310x610mm 380x680mm 450x750mm 35mm A15/B125/C250/D400
BLA-WG3353 330X530mm 400x600mm 470x670mm 35mm A15/B125/C250/D400
BLA-WG3868 380x580mm 450x750mm 520x820mm 35mm A15/B125
BLA-WG3869 380x680mm 450x750mm 520x820mm 35mm C250/D400

Application of manhole cover

a. Underground Electrical Installations: Draw pits, Traffic lights, Street lighting, Fiber optic cable ducts;
b. Telecommunications: Connection chambers, Water, Gas, Petrol-chemical installations.
c. Urban Building Solutions: Pedestrians and comparable areas, Car parking decks, Gully tops.
d. Road Construction: Road cover and the load is suit for all the road vehicles.





Applications of FRP/GRP/SMC manhole covers:

1.) Underground Electrical Installations: Sump pits, Traffic lights, Street lighting, Fiber optic cable ducts;
2.) Telecommunications: Connection chambers, Water, Gas, Petrol-chemical installations.
3.) Urban Building Solutions: Pedestrians and comparable areas, Car parking decks, Gully tops.
4.) Road Construction: Road cover and the load is suit for all the road vehicles.

How to choose a suitble manhole cover load capacity?

The manhole covers load capacities can be divided into 6 catagories:

Catagory 1: Class A15( Load 15KN or 1.5T - Wheel load 0.5T )

Areas where can be used by footways, pedestrains ares, side walking ways, or pedal cyclists.

Catagory 2: Class B125(Load 125KN or 12.5T- Wheel load 3T)

Areas where can be used by footways, pedestrians areas, car parks, driveways, etc.

Catagory 3: Class C250(Load 250KN or 25T - Wheel load 5T)

Roads for relatively slow moving traffic, i.e. minor residential, cul-de-sacs, pedestrian precincts and yards.

Catagory 4: Class D400(Load 400KN or 40T - Wheel load 11.5T)

Areas such as power stations, carriageways, hard shoulders, parking areas for all vehicle types. For high density traffic conditions we recommend the use of a vibration resistant locking system.

Catagory 5: Class E600(Load 600KN or 60T - Wheel load 20T)

Suitable for some airfield pavements, dockyards,other areas where single slow moving wheel loads up to 20T maybe encountered.

Catagory 6: Class F900(Load 900KN or 90T - Wheel load exceed 20T)

Aircraft hardstandings and taxiways at civil airports, container ports and dockyards where individual wheel loading exceed 20T)
